AseptiQuik S

See AseptiQuik S Products

AseptiQuik® S Connectors Small Format 1/8", 1/4" and 3/8" hose barb and the 1/4" & 3/4" sanitary termination Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector's genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8", 1/4" and 3/8" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Assets & Downloads

Spec Sheet

AseptiQuik S Series

CPC Aseptiquik S Assembly

AseptiQuik® S Connectors Small Format 1/8" and 1/4" Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments.

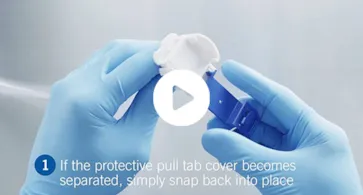

Aseptiquik S Best Practices

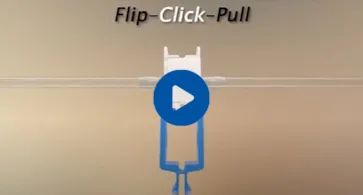

The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector’s genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders.

AseptiQuik S

See how the CPC AseptiQuik® S Connector for small-flow applications, even in non-sterile environments, advances reliable, sterile connections.

CPC Aseptiquik S Assembly

AseptiQuik® S Connectors Small Format 1/8" and 1/4" Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments.

CPC Aseptiquik S Assembly

AseptiQuik® S Connectors Small Format 1/8" and 1/4" Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments.

Features		Benefits
	Genderless Design		Ease single-use systems specifications with one part number for both halves
	FLIP-CLICK-PULL		Intuitive three-step connection process reduces risk of operator error
	Integrated Pull Tab Covers		Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
	Robust Construction		Repeatable and reliable performance with no additional hardware required
	CPC Click		Audible confirmation of assembly
	1/4" Sanitary termination with straight bore		Minimizes transitional flow disruptions through upstream processing

Specifications & Cv Value

Operating Conditions (Fluid Transfer)

Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Up to 60 psi, 4.1 bar
Typical Flow Rate:	Cv 1.74 for ¼” to ¼” and .19 for 1/8” to 1/8”

Materials

Main Components:	Polycarbonate (white), USP Class VI, ADCF
Pull Tabs/Covers:	Polycarbonate (blue, standard version), USP Class VI, ADCF
Pull Tabs/Covers:	Polycarbonate (white, HT version), USP Class VI, ADCF
Seals:	Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:	Polyethylene (standard version), USP Class VI, ADCF
Membrane:	Hydrophobic polyethersulfone (HT version), USP Class VI

Termination Sizes

Sizes:	1/8", 1/4" and 3/8" ID hose barb (3.2mm, 6.4mm and 9.5mm),3/4” sanitary and MPC insert

Sterilization

Gamma:	Up to 50 kGy irradiation
Autoclave:	High Temp (HT) Version:Up to 266°F (130°C) for 60 minutes

Cv Value

Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
