    Everis LQ6

    See Everis LQ6 Products

    The Everis LQ6 Series fittings feature 3/8” flow for liquid cooling of electronics applications. Everis® LQ6 connectors offer a high-flow capacity to optimize system performance. They provide ultra-reliable, dripless connections and disconnections to protect valuable equipment. Everis LQ6 fittings use patent pending valve technology that eliminates drips and are designed for long-term use. FKM and EPDM seals are standard options for compatibility with dielectric or glycol/water coolants. For other material and termination options see your regional CPC sales representative.

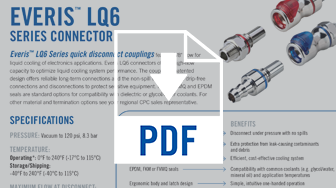

    Assets & Downloads

    CPC Everis LQ4 & LQ6 Highlights

    See how CPC enhanced its Everis LQ4 and Everis quick disconnects to further ensure the connectors’ ease of use and suitability for liquid cooling applications.


    Features Benefits

    Non-spill design

    Disconnect under pressure with no spills
    Redundant sealing when connected

    Extra protection from leaks
    Color-coding Instant visual difference in cooling lines

    No seal friction in connected state

    Ultra-reliable protection from drips at disconnect even after long periods in connected state

    Enhanced latch design

    Easy to see orientation on manifolds and tubing

    Lower ergonomic profile

    Meet size requirements for space-constrained electronics

    Specifications & Cv Value


    Pressure: Vacuum to 120 psi, 8.3 bar
    Temperature: 0°F to 240°F (-17°C to 115°C)

    Maximum Flow at Disconnect
    4.0 gal/min, 15.1 L/min

    Materials:
    Main housing components: Chrome-plated brass
    Valves and thumb latch: Polysulfone
    Valve spring (wetted): 302 stainless steel
    External spring: 302 stainless steel
    Seals: EPDM

    Color:
    Chrome with Cool Blue or Chrome with Warm Red

    Tubing Sizes:
    3/8" to 1/2" ID, 9.5mm to 12.7mm ID

    Lubricants:
    Krytox® PFPE

    Spillage:

    <0.03 cc per disconnect rated at 0 psi

    <0.03 cc per disconnect rated at 120 psi

    Inclusion:
    <0.02 cc per connect
    LQ6 Force to connectLQ6-Water-Flow-0-2
    LQ6 water flow 0-20GPM
    WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

    Products

    Filters

    LQ6D10006BLU

    LQ6D10006BLU

    3/8" Flow Everis LQ6 with 3/8" NPT, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D10006RED

    LQ6D10006RED

    3/8" Flow Everis LQ6 with 3/8" NPT, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D13008BLU

    LQ6D13008BLU

    3/8" Flow Everis LQ6 with 3/8" ID x 1/2" OD PTF, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D13008RED

    LQ6D13008RED

    3/8" Flow Everis LQ6 with 3/8" ID x 1/2" OD PTF, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D17006BLU

    LQ6D17006BLU

    3/8" Flow Everis LQ6 with 3/8" Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D17006LBLU

    LQ6D17006LBLU

    3/8" Flow Everis LQ6 with 3/8" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D17006LRED

    LQ6D17006LRED

    3/8" Flow Everis LQ6 with 3/8" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D17006RED

    LQ6D17006RED

    3/8" Flow Everis LQ6 with 3/8" Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D17008BLU

    LQ6D17008BLU

    3/8" Flow Everis LQ6 with 1/2" Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D17008LBLU

    LQ6D17008LBLU

    3/8" Flow Everis LQ6 with 1/2" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D17008LRED

    LQ6D17008LRED

    3/8" Flow Everis LQ6 with 1/2" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D17008RED

    LQ6D17008RED

    3/8" Flow Everis LQ6 with 1/2" Hose Barb, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D30006BLU

    LQ6D30006BLU

    3/8" Flow Everis LQ6 with 3/8" SAE thread, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D30006RED

    LQ6D30006RED

    3/8" Flow Everis LQ6 with 3/8" SAE thread, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D30008BLU

    LQ6D30008BLU

    3/8" Flow Everis LQ6 with 1/2" SAE thread, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D30008RED

    LQ6D30008RED

    3/8" Flow Everis LQ6 with 1/2" SAE thread, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D31006BLU

    LQ6D31006BLU

    3/8" Flow Everis LQ6 with 3/8" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D31006RED

    LQ6D31006RED

    3/8" Flow Everis LQ6 with 3/8" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D31008BLU

    LQ6D31008BLU

    3/8" Flow Everis LQ6 with 1/2" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Body, Cool Blue

    LQ6D31008RED

    LQ6D31008RED

    3/8" Flow Everis LQ6 with 1/2" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Body, Warm Red

    LQ6D20008BLU

    LQ6D20008BLU

    3/8" Flow Everis LQ6 with 3/8" ID x 1/2" OD PTF, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D20008RED

    LQ6D20008RED

    3/8" Flow Everis LQ6 with 3/8" ID x 1/2" OD PTF, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D22006BLU

    LQ6D22006BLU

    3/8" Flow Everis LQ6 with 3/8" Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D22006LBLU

    LQ6D22006LBLU

    3/8" Flow Everis LQ6 with 3/8" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D22006LRED

    LQ6D22006LRED

    3/8" Flow Everis LQ6 with 3/8" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D22006RED

    LQ6D22006RED

    3/8" Flow Everis LQ6 with 3/8" Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D22008BLU

    LQ6D22008BLU

    3/8" Flow Everis LQ6 with 1/2" Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D22008LBLU

    LQ6D22008LBLU

    3/8" Flow Everis LQ6 with 1/2" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D22008LRED

    LQ6D22008LRED

    3/8" Flow Everis LQ6 with 1/2" Locking Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D22008RED

    LQ6D22008RED

    3/8" Flow Everis LQ6 with 1/2" Hose Barb, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D24006BLU

    LQ6D24006BLU

    3/8" Flow Everis LQ6 with 3/8" NPT, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D24006RED

    LQ6D24006RED

    3/8" Flow Everis LQ6 with 3/8" NPT, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D46006BLU

    LQ6D46006BLU

    3/8" Flow Everis LQ6 with 3/8" SAE thread, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D46006RED

    LQ6D46006RED

    3/8" Flow Everis LQ6 with 3/8" SAE thread, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D46008BLU

    LQ6D46008BLU

    3/8" Flow Everis LQ6 with 1/2" SAE thread, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D46008RED

    LQ6D46008RED

    3/8" Flow Everis LQ6 with 1/2" SAE thread, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D47006BLU

    LQ6D47006BLU

    3/8" Flow Everis LQ6 with 3/8" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D47006RED

    LQ6D47006RED

    3/8" Flow Everis LQ6 with 3/8" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Insert, Warm Red

    LQ6D47008BLU

    LQ6D47008BLU

    3/8" Flow Everis LQ6 with 1/2" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

    LQ6D47008RED

    LQ6D47008RED

    3/8" Flow Everis LQ6 with 1/2" G-thread/BSPP, Valved In-Line Liquid Cooling Coupling Insert, Warm Red
